Boom on excavator
CAT 395 boom
The Caterpillar 395 Excavator is a heavy-duty machine often used for large-scale projects like mining, quarrying, and heavy earthmoving. Adding a long-reach boom to the CAT 395 enhances its capability to handle tasks such as dredging, deep excavation, and slope finishing.
Quantity:
Product Description:
Key Features of Cat 395 Long Reach Boom
1. Cat 395 Long Reach Boom and Depth Increased Reach: Enables the excavator to reach up to 18-22 meters. Deeper Digging Capability: Can achieve digging depths of up to 14-15 meters. Enhanced Dumping Height: Designed for efficient material placement at greater heights.
2. Robust and Reinforced Design Heavy-Duty Boom and Stick: Built with high-strength steel to withstand additional stresses. Optimized for Durability: Reinforced connections and wear-resistant materials enhance longevity.
Specialized Bucket Options: Compatible with smaller, lighter buckets to reduce stress on the boom and improve precision.
3. Advanced Hydraulic System High Flow Capacity: Maintains smooth operation even under extended reach loads. Precise Control: Advanced Cat hydraulics provide smooth, efficient, and predictable performance for long-reach operations.
4. Stability and Balance Increased Counterweight: Additional or heavier counterweights are added to maintain machine stability during extended reach operations. Enhanced Undercarriage: Designed to handle the extra leverage and stress from the long-reach configuration.
5. Application Versatility Dredging: Rivers, harbors, and lakes. Deep Excavation: Trenches, basins, and foundations. Slope Finishing: Grading and contouring large areas. Waste Handling: Extended reach for handling materials in recycling or landfill operations.
6. Operator Comfort and Safety Ergonomic Cab Design: Provides excellent visibility and control for precision tasks. Integrated Technology: Optional features like Cat Grade Control, 2D/3D systems, and Payload technologies improve accuracy and productivity. Safety Systems: Cameras, lighting, and fall protection features ensure safe operation in demanding environments.
7. Customizable Configurations Boom and stick lengths can be tailored to meet specific project requirements. Multiple bucket options allow optimization for dredging, material handling, or excavation.
8. Ease of Maintenance Designed for easy servicing to reduce downtime. Reinforced components help minimize wear and maintenance frequency.
1. Cat 395 Long Reach Boom and Depth Increased Reach: Enables the excavator to reach up to 18-22 meters. Deeper Digging Capability: Can achieve digging depths of up to 14-15 meters. Enhanced Dumping Height: Designed for efficient material placement at greater heights.
2. Robust and Reinforced Design Heavy-Duty Boom and Stick: Built with high-strength steel to withstand additional stresses. Optimized for Durability: Reinforced connections and wear-resistant materials enhance longevity.
Specialized Bucket Options: Compatible with smaller, lighter buckets to reduce stress on the boom and improve precision.
3. Advanced Hydraulic System High Flow Capacity: Maintains smooth operation even under extended reach loads. Precise Control: Advanced Cat hydraulics provide smooth, efficient, and predictable performance for long-reach operations.
4. Stability and Balance Increased Counterweight: Additional or heavier counterweights are added to maintain machine stability during extended reach operations. Enhanced Undercarriage: Designed to handle the extra leverage and stress from the long-reach configuration.
5. Application Versatility Dredging: Rivers, harbors, and lakes. Deep Excavation: Trenches, basins, and foundations. Slope Finishing: Grading and contouring large areas. Waste Handling: Extended reach for handling materials in recycling or landfill operations.
6. Operator Comfort and Safety Ergonomic Cab Design: Provides excellent visibility and control for precision tasks. Integrated Technology: Optional features like Cat Grade Control, 2D/3D systems, and Payload technologies improve accuracy and productivity. Safety Systems: Cameras, lighting, and fall protection features ensure safe operation in demanding environments.
7. Customizable Configurations Boom and stick lengths can be tailored to meet specific project requirements. Multiple bucket options allow optimization for dredging, material handling, or excavation.
8. Ease of Maintenance Designed for easy servicing to reduce downtime. Reinforced components help minimize wear and maintenance frequency.

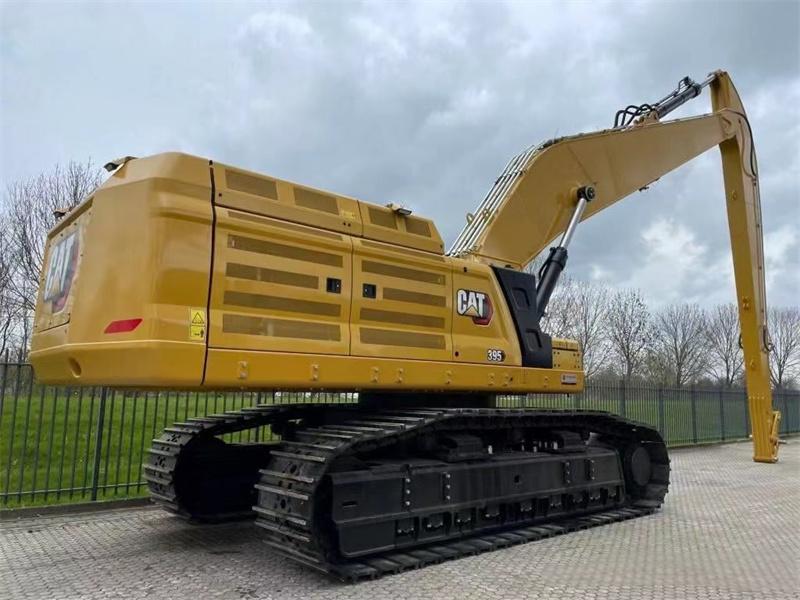

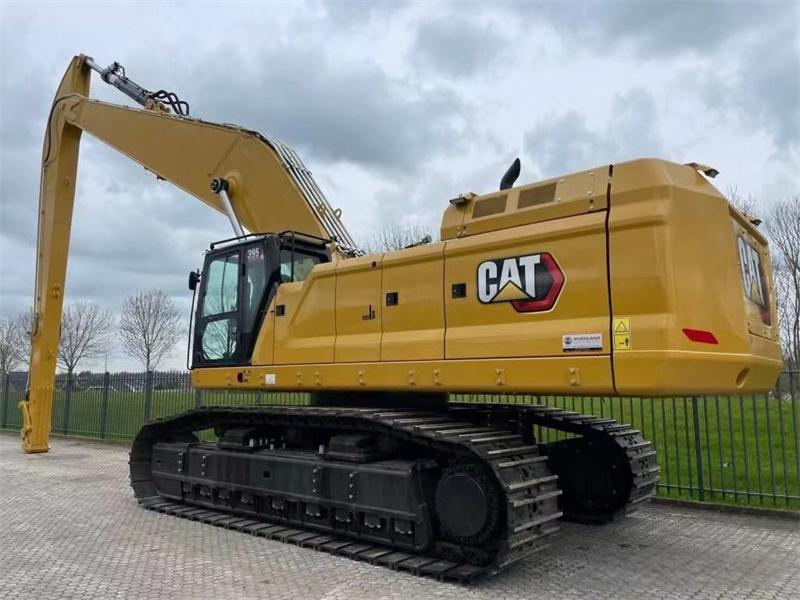

Cat 395 Cat long boom excavator and boom on excavator:
Specifications
| Cat 395 Long Reach Boom Parameters | |
| Boom and Stick Configuration | |
| Boom Length | 10–12 meters |
| Stick Length | 6–8 meters |
| Performance Specifications | |
| Maximum Reach at Ground Level | Up to 20–22 meters |
| Maximum Digging Depth | Up to 14–15 meters |
| Maximum Dump Height | Up to 12–14 meters |
| Bucket Compatibility | |
| Bucket Capacity Range | 0.5–1.2 m³ (Smaller bucket sizes are typically used to reduce stress on the boom and stick while maintaining precision) |
| Operating Weight | |
| Approximate Operating Weight | 94,000–100,000 kg (Includes additional counterweights to ensure stability) |
| Hydraulic System | |
| Main System Flow | High flow optimized for long-reach operations |
| Hydraulic Pressure | Same robust specifications as the standard Cat 395, supporting smooth operation under extended loads |
| Undercarriage and Counterweight | |
| Undercarriage | Reinforced for stability and durability under the additional leverage of a long-reach setup |
| Counterweight | Increased or additional counterweights are added to counterbalance the extended boom |
| Dimensions | |
| Width – Over Tracks | 3.2–3.4 meters, depending on track width |
| Transport Height | 3.8–4.0 meters, depending on configuration |
| Transport Length | Longer than standard due to the extended boom and stick, requiring transport adaptation |

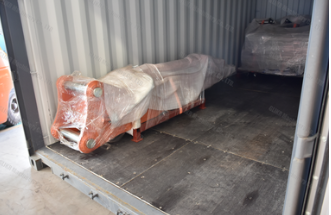

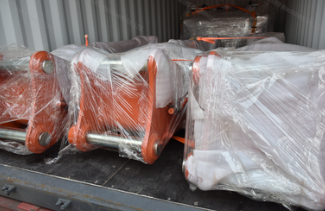

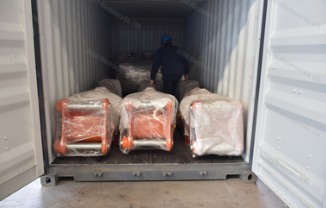

Shipping&Packing：
We'll pack boom on excavator for you and ship it to where you need it in perfect condition
FAQ:
1. Do you provide ODM/OEM?
Yes, we can customize excavator parts according to your specific requirements, including excavator long reach booms, buckets, and hydraulic cylinders.
2. What is your minimum order quantity?
There is no MOQ for any of our product, We will provide endless technical support and high-quality after-sales service whether you need ODM/OEM or purchase products.
3. How about the compatibility of the booms? Can they match my excavator model?
We have a professional technical team that has conducted in-depth research and designed for compatibility with mainstream excavator models on the market. Before you place an order, you just need to tell us the brand, model and relevant parameters of your excavator, and we will be able to customize or provide suitable boom products for you to ensure a perfect match with your equipment and that they can operate and work normally and efficiently after installation.
4. How much is the deposit usually paid？
We generally pay 60% deposit for the extended arm, and make up the remaining balance before delivery.
