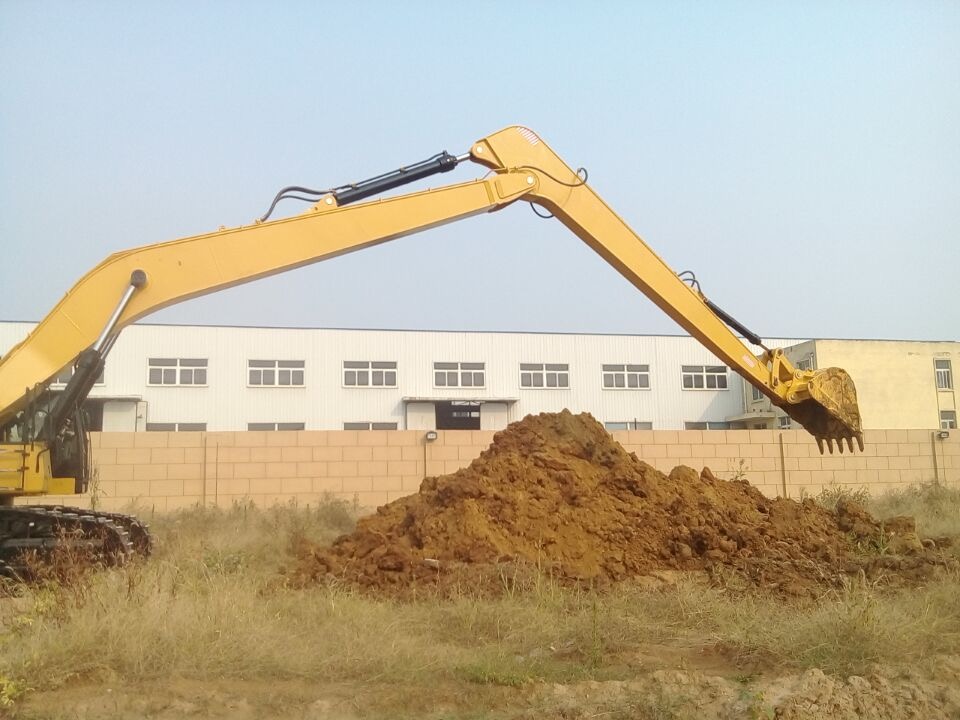

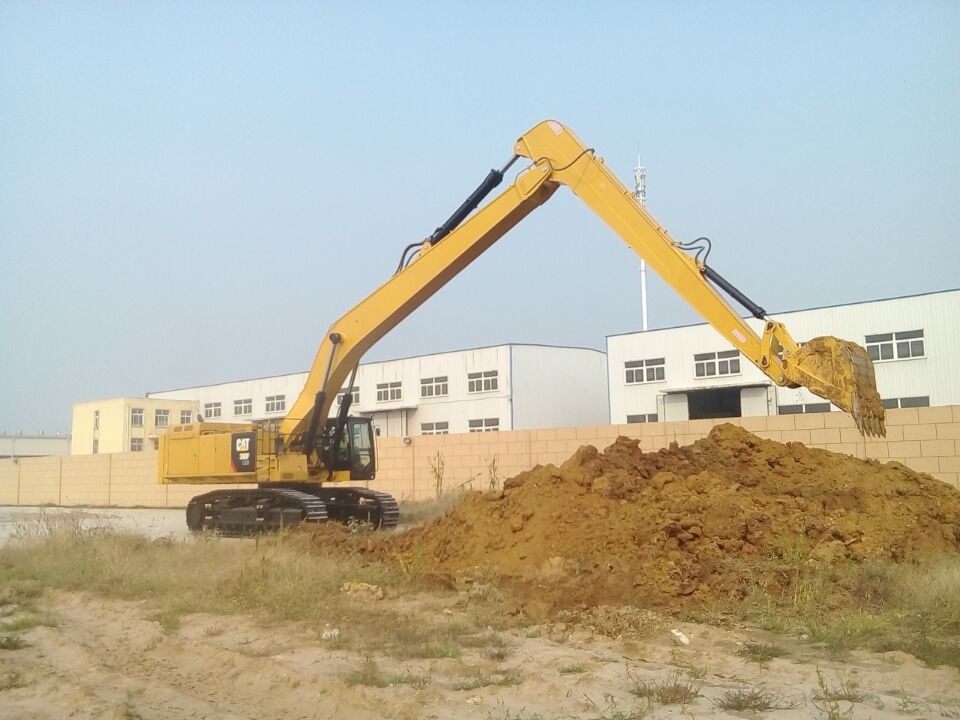

CAT390 20m Long Reach Excavator Boom
CAT390 20m
Caterpillar CAT390 excavator long reach boom
Quantity:
CAT390 20m Long Reach Excavator Boom Product Description:
CAT390 20m Long Reach Excavator Boom Specification：
| Compatible Models | CAT390， CAT 374, CAT 395, etc. | For 70-90 ton excavators |
| Boom Length | 11.0 meters | - |
| Stick Length | 9.0 meters | - |
| Max Digging Radius | 20.5 meters | Depends on bucket size & working angle |
| Max Digging Depth | 15.5-16.0 meters | - |
| Max Digging Height | 18.0-19.0 meters | - |
| Max Dumping Height | 15.0-16.0 meters | - |
| Recommended Bucket | 1.0-1.5 cubic meters | Based on working conditions |
| Weight | Approx. 6.0-7.5 tons | Varies by structure |
| Steel Material | Q355B / Q690D | Depending on customization |
| Pin Material | 42CrMo Alloy Steel | High strength & wear-resistant |
| Reinforcement Design | Internal ribs + wear plates | For durability |
| Application | River dredging, deep foundation pit construction, reservoir dredging, port operations, etc | - |
CAT390 20m Long Reach Excavator Boom Characteristic：
（1）.Advanced welding process:
Double wire submerged arc welding (SAW) with JQ·MG70 welding wire, weld depth of 12mm, impact work ≥80J (-40℃). The key joints are welded with robot laser-MAG composite welding, the heat affected zone is reduced by 40%, and the strength of the welded joint reaches 95% of the base material. After 100%UT flaw detection and magnetic particle detection, the defect detection rate is less than 0.1mm.
（2）.Anti-fatigue strengthening treatment:
The main stress surface is treated with prestressed shot peening, the surface residual pressure stress reaches -650MPa, and the fatigue life is increased by 5-8 times. The pin hole parts are strengthened by cold extrusion, the aperture tolerance is controlled at H7 level, and with nitriding treatment (layer depth 0.3mm), 2 million cycles without wear are achieved.
Provide OEM/ODM and Quick drawing:
We have professional engineers to tailor-make excavator long reach boom for you. You can make any request and we will try our best to meet it, or we can design an excavator long reach boom that suits your excavator.
Shipping&Packing：
Before shipping, we conduct thorough quality inspections on all excavator parts to ensure each product meets our customers' standards. We then carefully package each item using professional-grade materials to prevent damage during transit. Depending on the size, weight, and shape of the parts, we select suitable packaging solutions, such as reinforced wooden crates, thick foam padding, or shock-proof wrap, to maximize the safety of the items.
Once packaging is complete, we arrange transportation with reliable logistics partners and provide full tracking services to ensure the goods arrive safely and on time at the customer’s specified location. We prioritize our customers’ needs, striving to make each shipment smooth and dependable to support their projects efficiently.
FAQ:
1. Do you provide ODM/OEM?
Yes, we can customize excavator parts according to your specific requirements, including excavator long reach booms, buckets, and hydraulic cylinders.
2. What is your minimum order quantity?
There is no MOQ for any of our product, We will provide endless technical support and high-quality after-sales service whether you need ODM/OEM or purchase products.
3. How do you ensure the quality of your excavator booms?
Our manufacture extended booms using the best materials in China and have passed strict certifications by professional institutions. There is a strict quality control system in place for every step, from raw material procurement to production and processing. During the production process, advanced manufacturing techniques and precision equipment are employed to ensure that key indicators such as dimensional accuracy, structural strength and welding quality of the booms meet or even exceed industry standards, thus guaranteeing the high quality and stability of the products.
4. How about the compatibility of the booms? Can they match my excavator model?
We have a professional technical team that has conducted in-depth research and designed for compatibility with mainstream excavator models on the market. Before you place an order, you just need to tell us the brand, model and relevant parameters of your excavator, and we will be able to customize or provide suitable boom products for you to ensure a perfect match with your equipment and that they can operate and work normally and efficiently after installation.
5.How much is the deposit usually paid？
We generally pay 60% deposit for the extended arm, and make up the remaining balance before delivery.
